IR Infrared Obstacle Avoidance Sensor Module for Arduino Smart Car Robot - (Pack of 5)

Brand: Robo Inventors

0 review

RRP : ~~24.99~~

Price : 20.99 FREE Delivery ( Inclusive of all taxes )

You Save: 4

Shipping Available:

United States: 0 Delivery charge.

Sold By: Unicorpse

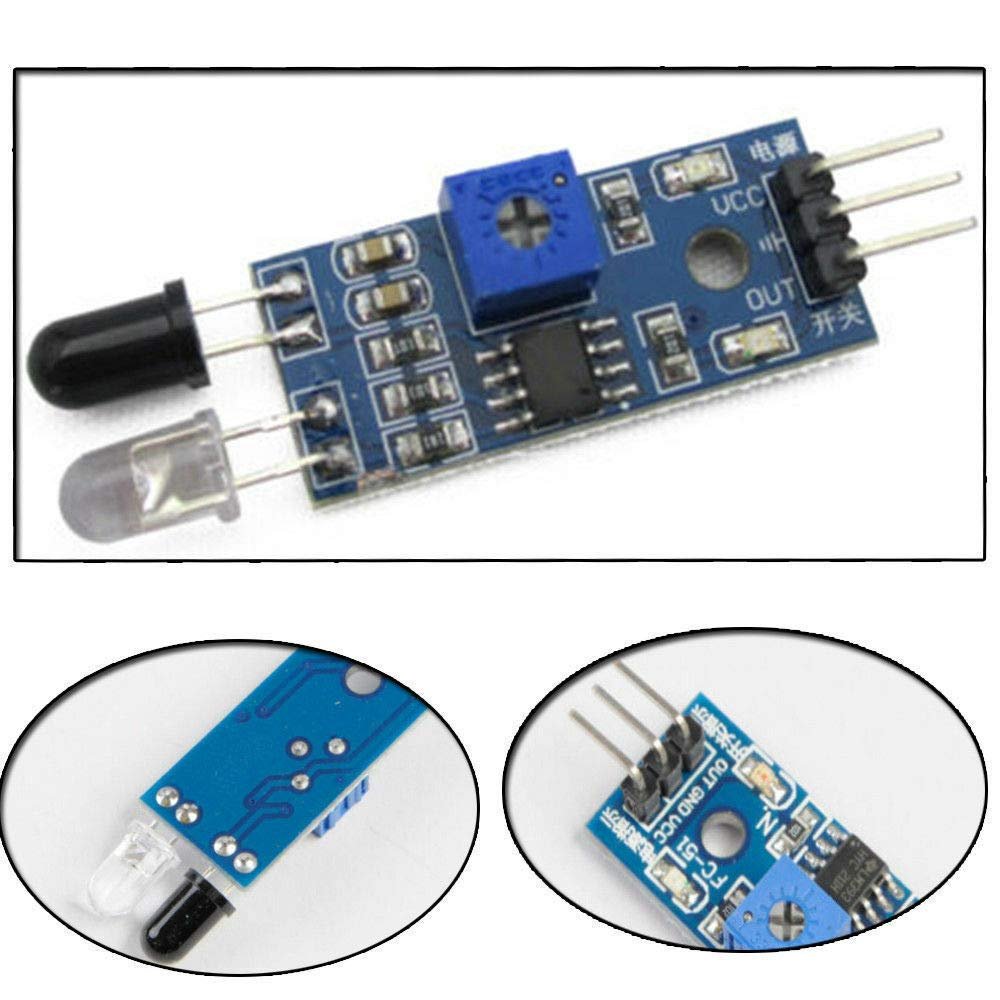

IR Infrared Obstacle Avoidance Sensor Module can be widely used in robot obstacle avoidance, obstacle avoidance car, line count, and black and white line tracking and so on
the module detects the distance 2 ~ 30cm, detection angle 35 °, the distance can detect potential is adjusted.
The output port OUT sensor module can be directly connected to the microcontroller IO port, you can directly drive a 5V relay.

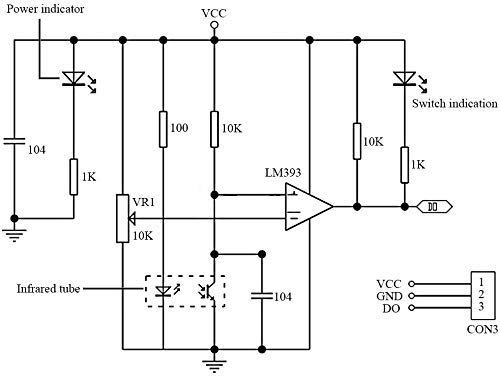

it has a pair of infrared transmitting and receiving tube, tube infrared emit a certain frequency, when detecting direction meet with obstacles (reflecting surface), reflected infrared receiving tube, after the comparator circuit processing, green indicator will light up, at the same time signal output interface to output digital signal (a low level signal).
Can be used for 3-5V DC power supply modules. It has red power indicator.

More Than 10 Available

Add to Cart

Buy Now

SKU: TH1052

Categories:Robotics, Sensor

Tags :

The IR Infrared Obstacle Avoidance Sensor Module detection range can be through the potentiometer to adjust and have small interference, easy to assemble, easy to use. It can be widely used in robot obstacle avoidance, obstacle avoidance car, line count, and black and white line tracking and so on

Specification :

The output port OUT sensor module can be directly connected to the microcontroller IO port , you can directly drive a 5V relay ; the module detects the distance 2 ~ 30cm, detection angle 35 °, the distance can detect potential is adjusted Can be used for 3-5V DC power supply modules When the power is turned on, the red power indicator light Using the comparator LM393

Interface :

VCC: External 3.3V-5V voltage (can be directly connected to 5v MCU and 3.3v MCU)

GND: GND External

OUT: Small board digital output interfaces (0 and 1)

Connection :

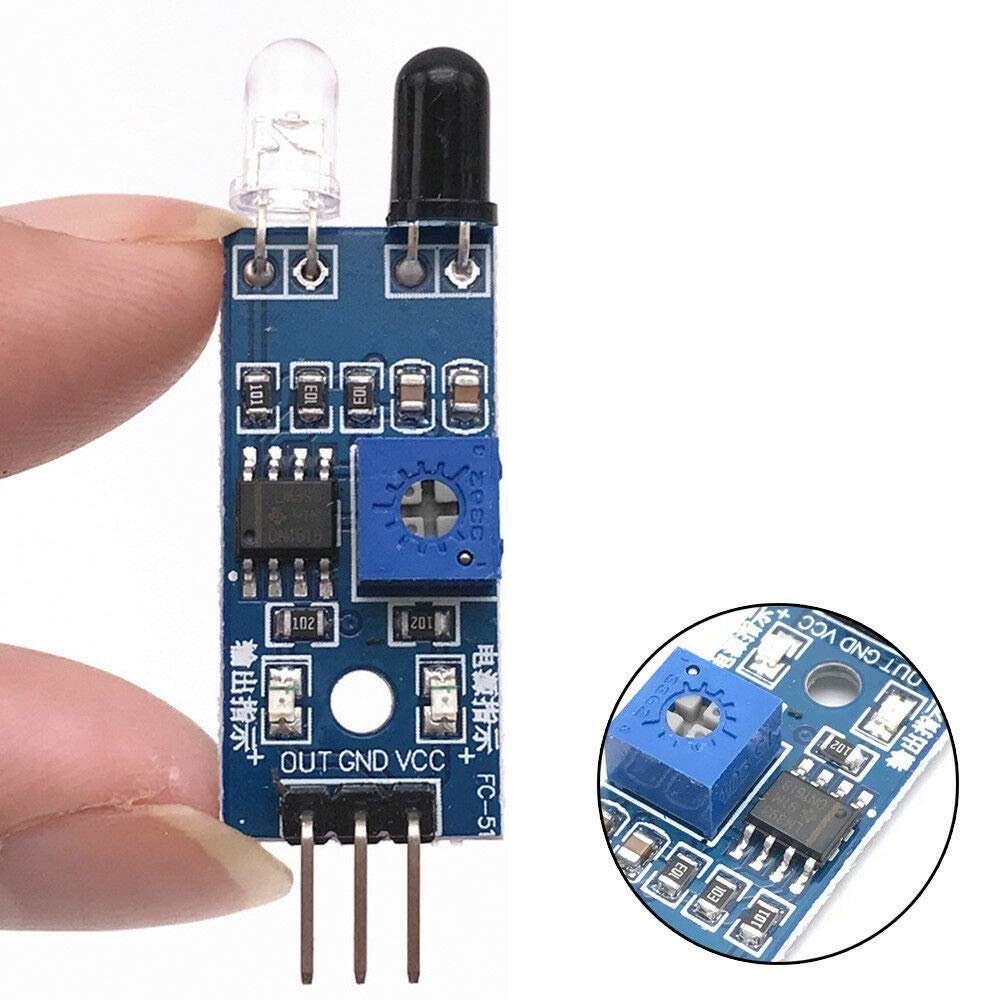

VCC-VCC; GND-GND; OUT-IO With the screw holes of 3mm , easy fixed installation Board Size : 3.1CM * 1.5CM / 1.22 * 0.59"

Package includes:
5 x Infrared Obstacle Avoidance Module
